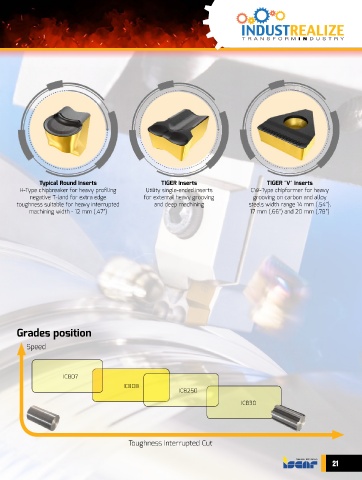

Typical Round Inserts TIGER Inserts TIGER “V” Inserts
H-Type chipbreaker for heavy profiling Utility single-ended inserts CW-Type chipformer for heavy
negative T-land for extra edge for external heavy grooving grooving on carbon and alloy
toughness suitable for heavy interrupted and deep machining steels width range 14 mm (.54”),
machining width - 12 mm (.47”) 17 mm (.66”) and 20 mm (.78”)

Grades position

Speed

IC807
IC808
IC8250

IC830

Toughness Interrupted Cut
